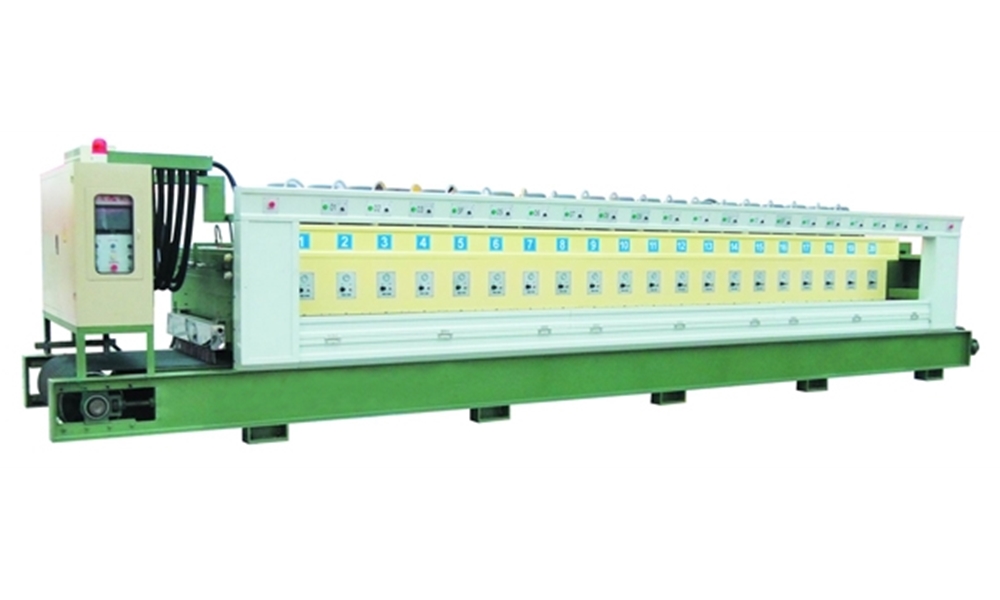

Name：LXM20-head automatic polishing machine
Details
The machine uses resin disc and tilting disc, because resin disc is light in weight, small in consumed power, and high in grinding efficiency; its price is only 1/2 of traditional continuous grinding and polishing machine of the same specification; the power needed by the grinding disc is 7.5KW, which is only 1/3～2/3 of grinding head for ordinary grinding machine of the same specification, with low power consumption. The machine is multi-point continuous board-incoming production, with high efficiency and low labor cost. Production efficiency of a set of equipment may be that of several walking or bridge-type grinding and polishing machine, and only 2～4 workers are needed. As for the machine, air pressure controls lifting and falling of grinding disc and pressuring range is adjustable; oscillating beams can drive grinding disc for moving and movement speed is adjustable; belt of belt-type board-sending workbench can is adjustable; electrical system adopts PLC and human-computer interface.
| Main technical parameters | ZDM100-20 |
| Grinding disc diameter | Φ200mm |
| Width of grinding and polishing panel | 300-1000mm |
| Thickness of processing panel | 10-30mm |
| The number of grinding head | 20pieces |
| Total power | 165．3kw |
| Main motor | 20*7.5kw |
| Conveyor motor power | 4kw |
| Beam swing motor power | 2*4kw |
| Power washing power | 1.1kw |
| Fan motor power | 2.2kw |
| Conveyor speed | 0-2380mm/min |
| Air supply pressure of compressor | 0.60-0.8Mpa |
| Cooling water pressure | ≥0.15Mpa |
| Water consumption of single grinding head | ≥25L/min |
| Weight | 15000kgs |
| Spatial size | 10000*2740*1960mm |
|
